SturdyLift™ PLUS Truck Series – Portable Pump Jack Kit (2 stories x 24 ft)

(0 review)

Tout le nécessaire pour un montage complet, robuste et conforme. Prêt à installer pour vos travaux en hauteur.

Ultra portative, cet ensemble permet d’atteindre jusqu’à 24 pieds de hauteur et de couvrir un mur allant jusqu’à 24 pieds de long.

Conçue spécialement pour être transportée facilement dans une boîte de camion ou sur un rack à échelle, la Série Truck est idéale pour les entrepreneurs qui veulent un système complet, sécuritaire et conforme, sans avoir besoin d’une remorque. Avec ses poteaux modulaires de 12 pieds et ses connecteurs, l’ensemble se monte rapidement sur le chantier tout en restant léger et pratique à déplacer.

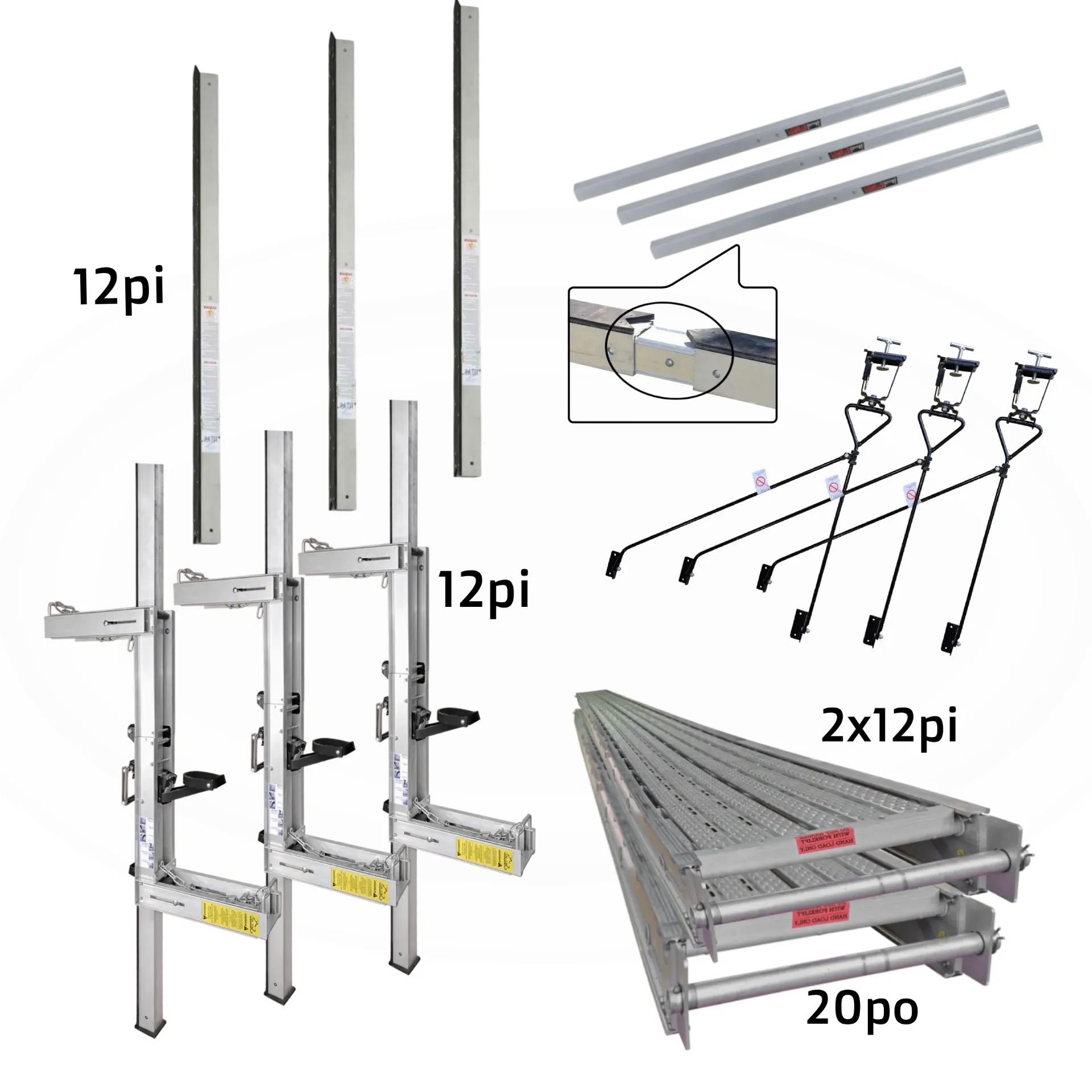

Kit contents:

  • 6 aluminum poles, 12 ft each – Lightweight, strong, and CSA/CNESST compliant for safe work up to 2 stories high.
  • 3 pole connectors – Allow poles to be joined together to reach the required working height.
  • 3 pump jack mechanisms – Foot pedal + crank lifting system, equipped with dual locking safety.
  • 3 workbench supports – Practical for holding tools and materials; automatically rise with the platform.
  • 3 standard steel braces – Secure installation on walls or roof edges.
  • 3 rubber pole bases – Maximum stability on all types of surfaces.
  • 2 non-slip aluminum walkboards 20" x 12 ft – Robust, CNESST/OSHA compliant, easy to handle, and ideal for teamwork.
Add to cart
Buy now
Add to wishlist
Price
5,447.40 $ 5,447.40 $

Technical Characteristics

  • Certified capacity: 500 lbs permissible
  • Tested to: 2000 lbs distributed (validated 4:1 safety factor)
  • Main material: 6061-T6 aluminum
  • Compatibility: 14", 20", 24" aluminum walkboards
  • Fastening: safety chain + integrated anti-slip system













Contact Us
Documents
Instruction d'assemblage pour système de Pump-jack SturdyLift.pdf

 10-year warranty – Offered exclusively on the SturdyLift™ by Sky-Hi line, available only at Équipement Sturdy.

Complete solution – Includes all essential components (poles, pump jack mechanisms, workbench supports, steel braces, bases, and aluminum planks) to quickly set up a compliant and secure system.

Certified safety – Built from 6061-T6 aluminum and compliant with CSA/CNESST standards, allowing safe work up to 50 feet in height.

  Versatile – Compatible with 14", 20", and 24" aluminum planks, ideal for siding, painting, caulking, or installing doors and windows.

  Jobsite ready – Designed for intensive professional use, easy to assemble and move from one project to another.

Why choose our SturdyLift™ Pump Jack Base Kit?
