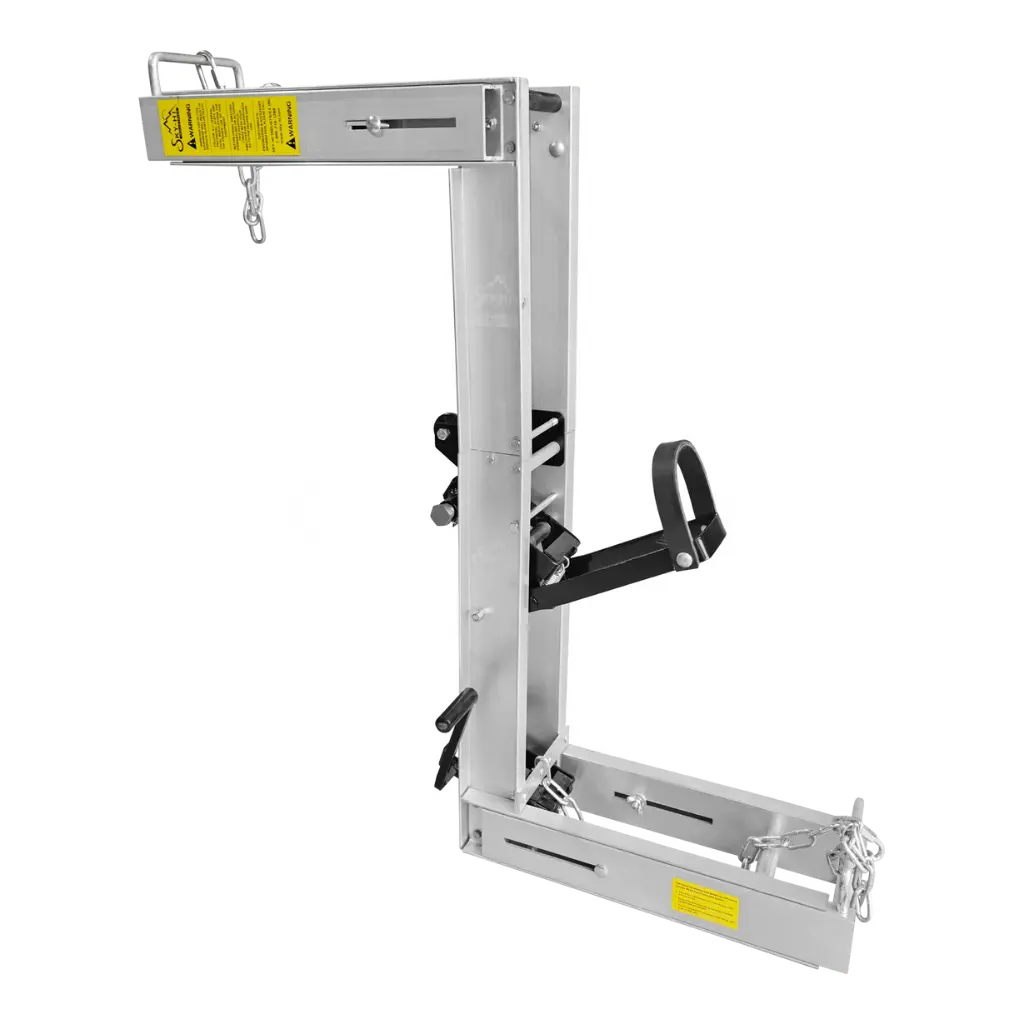

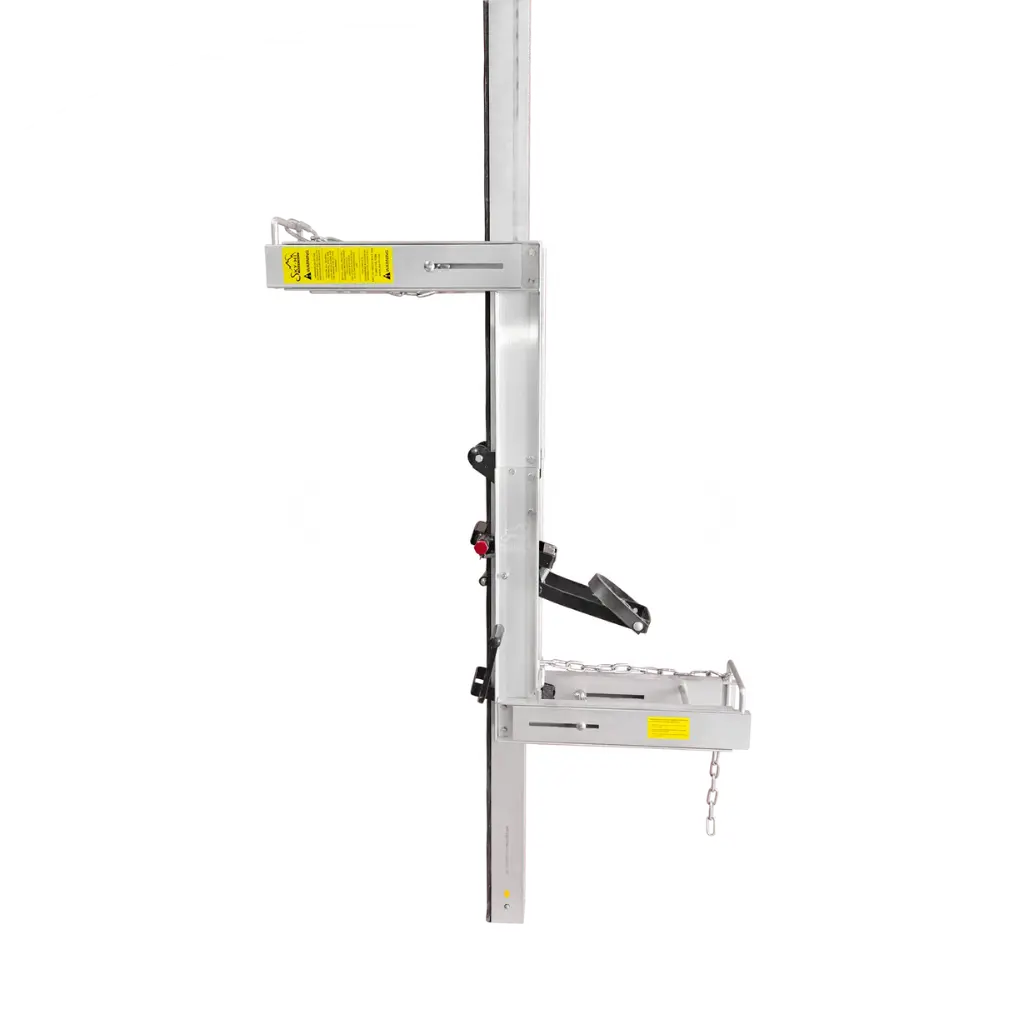

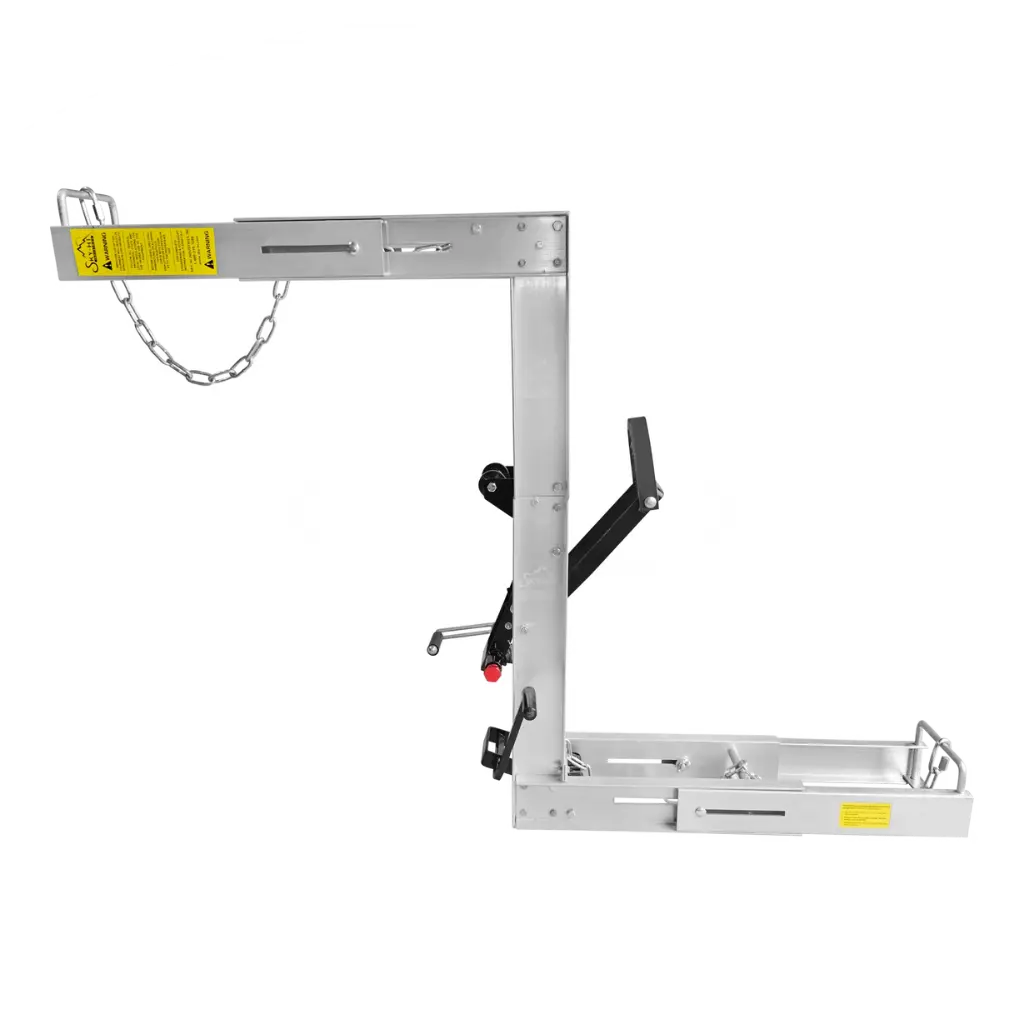

Aluminium planks Support with ''Pump-jack'' Mechanism

(0 review)

Pump-Jack System Mechanism : Rated to 2000 lb, 10-Year Warranty

This aluminum walkboard support with integrated Pump-Jack system mechanism forms the base of a safe, mobile elevated workstation. Used with a walkboard and pole, it’s part of a fully engineered system. Tested to 2000 lb distributed load and certified for a working capacity of 500 lb with a 4:1 safety factor, fully compliant with CNESST, OSHA, and CSA standards.

 Technical Specifications

  • Rated load: 500 lb
  • Tsted strength: 2000 lb distributed (4:1 ratio)
  • Material: 6061-T6 aluminum
  • Compatibility: 14", 20", 24" walkboards
  • Anchorage: safety chain + mechanical anti-slip system
Add to cart
Buy now
Add to wishlist
Price
285.00 $ 285.00 $

Tested to 2000 lbs, certified to 500 lbs, guaranteed for 10 years – a robust Jack, compliant and compatible with the entire Sturdy range. Order today and secure your operations at height with a proven system.

 Fast and Reliable Delivery
Ships within 3-5 business days (express option available in 1-2 days). Ready-to-use product – no adjustment required.


Recommended Applications

  • Exterior siding, painting, caulking, gutters, soffits
  • Residential or multi-unit renovation
  • Facade maintenance, pressure washing, working at height
Contact Us

Why Choose Our Gateway (Jack) Support?

  Tested up to 2000 lbs : Laboratory-tested structure under maximum distributed load – superior robustness for intense professional use.

  Construction site capacity: 500 lb (certified) : Compliant with current standards, with a safety factor of 4:1 , for safe use in real-life situations.

Integrated lifting mechanism : Ascent by foot lever, descent by disengaging the brake and rotating the crank. Smooth, reliable and safe.

Reinforced fixing : Integrated safety chain and anti-slip system to keep the walkway securely in place, without lateral movement.

 Adjustable width : 14" to 24" Compatible with all Sturdy Gateways – 14" (bench), 20" or 24" (main gateway).

  10-year warranty : Against any manufacturing or material defects – professional durability guaranteed.
